Complete weighbridge solutions for weighing, registration, data collection and control
Scanvaegt Systems designs and provides complete weighbridge solutions for weighing, registration, data collection and control, which contribute to quality, efficiency and increased profits.
The solutions consist of weighbridges, terminals, traffic control systems, surveillance equipment, IT systems and are designed to handle industry-specific tasks in the environmental sector, recycling industry, construction industry, raw materials industry, recycling centres and agriculture.

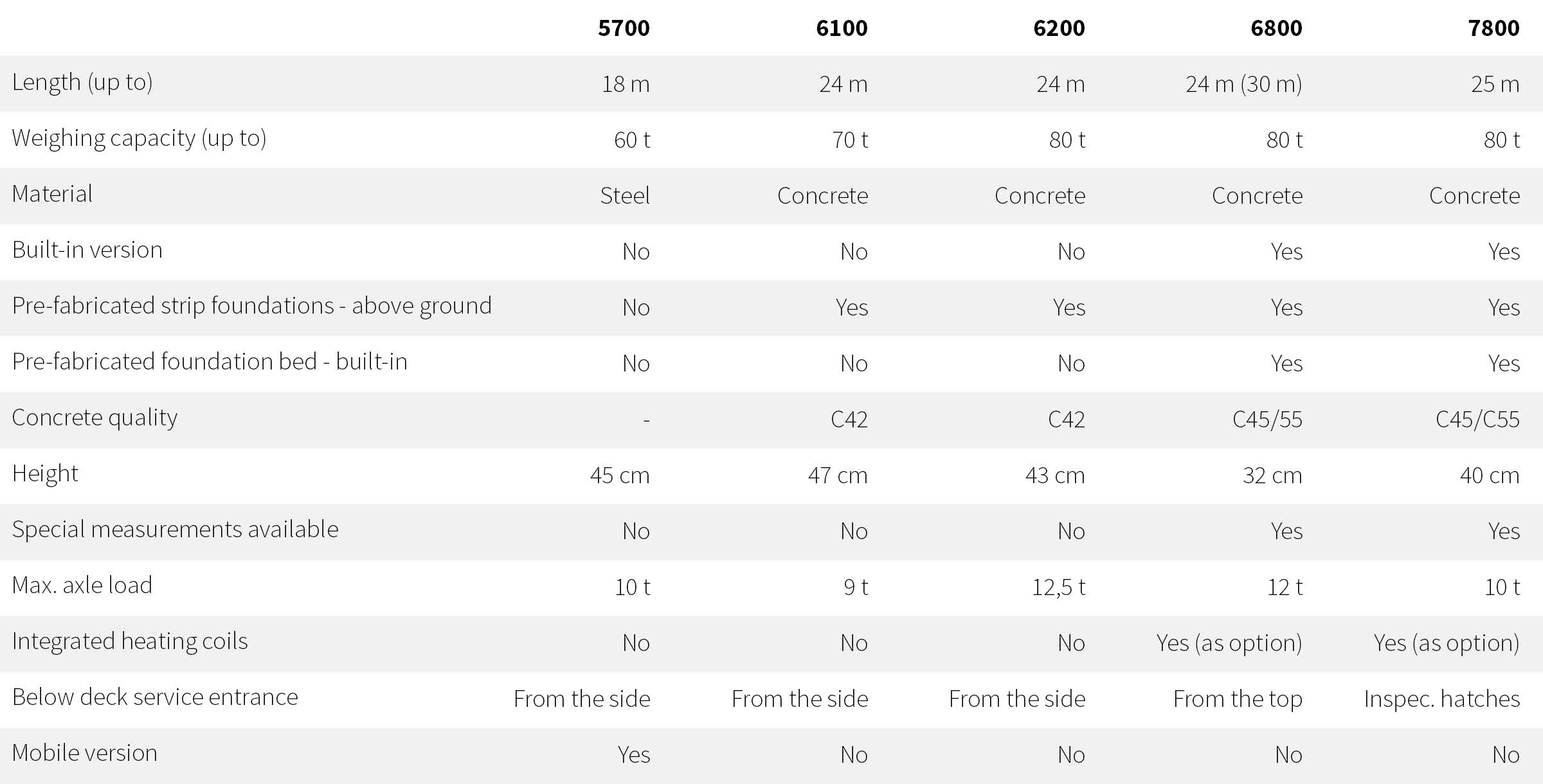

Our weighbridge range includes full concrete weighbridges, steel weighbridges and cast-for-yourself weighbridges and movable weighbridges.
Scanvaegt 7800 Weighbridge
The sturdy concrete truck scale that is installed in just one day
Weighbridge for any weighing task
Scanvaegt Systems sell complete weighing systems for all types of weighing of large vehicles and related IT system solutions for the environmental sector, agriculture, royal weighers, etc.
A Scanvaegt weighbridge is available with a load capacity of up to 100 tons and a division of 20/10/50 kg. They can handle virtually any weighing task within both agriculture and industry. The weighbridges are verifiable according to the latest EU regulations.
Reliable and accurate weighing function
The load cells of the weighbridge are made of stainless steel with IP68 seal rate, which makes them extremely reliable.
A unique construction principle allows a direct force transfer to the load cells and ensures a fast and accurate weighing result. The load cells are placed on elastomeric bearings which protect against potential side movements, dynamic loads and mechanical wear, resulting in a longer service life and lower maintenance costs.
More powerful features
The load cells have special protection against lightning strikes which prevents damage and ensures continuous operation.
There is easy access to inspect the load cells, since all parts are easily accessible from the side of the weighbridge. The weighbridge has no visible cables - all are covered in cable ducts and are thus protected from external factors and, e.g. gnawing from pests.
Flexible, scalable software solution
ScanX.Net is a modular, scalable IT system for the handling and administration of weighing on weighbridges. The system has a number of standard modules for waste registration, reporting, payment, traffic control, identification, billing calculation and many others. ScanX.Net can also control multiple production or treatment plants with different geographical locations and categorises the data from the different plants in the same database.
The modular system design of ScanX.NET software offers great flexibility and ensures optimal adaptation to the individual solution. The system can easily be expanded with both standard modules and customised modules when the company and the solution grows or changes.
